Flowstone, for when you don't have a draw program
by strangeChild » Sat Oct 12, 2013 7:01 pm
I wanted to draw an image of the stock electronics-project board I use to plan circuits on and I don't have a draw program on my home machine (and didn't want to learn any new software for a one-off need) so I used Flowstone to make this in about 20 min.
It wasn't ideal but it worked and was fairly quick.
But when you have no intension of maintaining or reusing a schematic it ends up looking like this inside
- test.png (25.8 KiB) Viewed 6571 times
It wasn't ideal but it worked and was fairly quick.

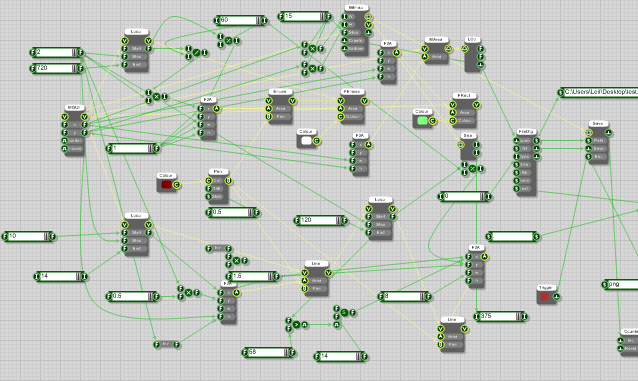

But when you have no intension of maintaining or reusing a schematic it ends up looking like this inside
- capture.png (84.92 KiB) Viewed 6571 times
- strangeChild
- Posts: 47
- Joined: Sat Apr 27, 2013 8:04 pm
