Setup priority on MIDI Execution - Delay?

[Nowhk]

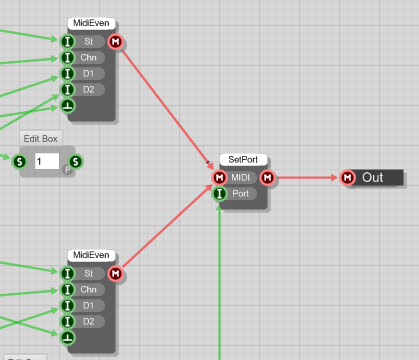

Is there a way (in this case) to always output the MIDI (in the upper part) before the MIDI in the lower part?


I need priority on execution here due to the application I'm making. Is there any MIDI delay?

[Nowhk]

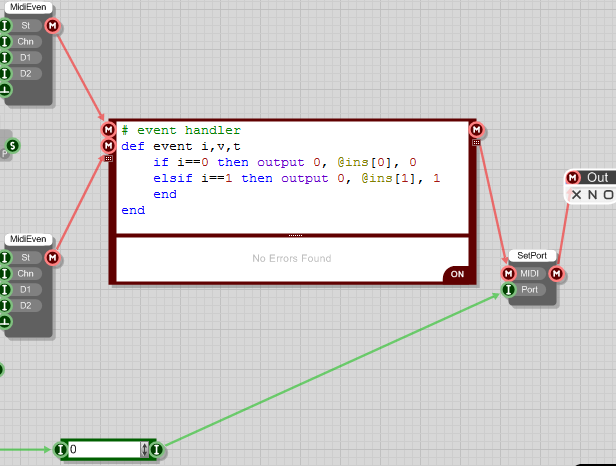

Well, this is what I've done with Ruby:


not sure how much consistency this code will be, but seems to works.
How is managed the output time and @ins array? Are unique for each event handler? Or can they mess each others?

[tiffy]

delete

[Nowhk]

Did you try to change the "link Order" of the two Midi Inputs on the "setPort" primitive?

Uhm, how can I do it? Order on the links?

[tiffy]

deleted

[Nowhk]

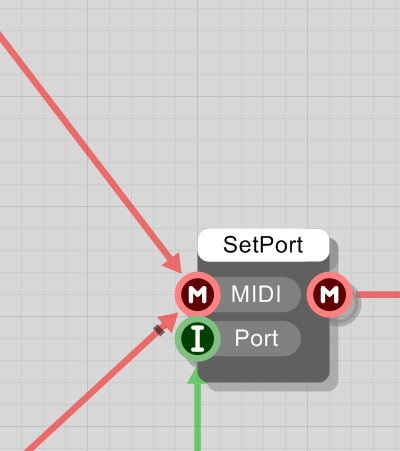

The easiest is to connect the top link first and then the bottom link or alternatively hover mouse on the left side "M" of the setPort primitive and left click on it once only. You will see the marker flip to the lower Midi link.

In this way?


Nothing change. The upper part is trigger later

[tiffy]

deleted

[Nowhk]

Yes.

I want the upper part triggered before And also if I switch the cables, nothing change: the lower part always output as first.

But if this doesn't work then I cannot help you any further as I never worked with Midi.

No matter, thank you for the help anyway

Any Flowstone/DSP master can tell me if my Ruby approch is ok? I don't know in deep how pins/events/time/arrays are processed, honestly.

[nix]

Hey Nowhk,
How's it going? Pleased to meet you.

I can help here I think.
I am familiar with Ruby MIDI.
In the code you have written,
it doesn't actually delay the second one I think.
It allows the signal to pass through without change.

I have a problem concieving of the function you wish to create.
Do you mean that the 2 midi ins receive a message at the same time, and then the order is created?
If you'd like, you can send me the schematic in a pm and detail what you are trying to do.

Tiffy is quite right that we can use a trick here if you are happy to create the message with the 'midi event'
prims. You can do this link order thing with trigger input pins of the 'MIDI event'.

But I would like a larger picture of what you wish to accomplish.
However, I will make you MIDI delays in green and Ruby prolly.
I'll be back later today to this thread with them.

[nix]

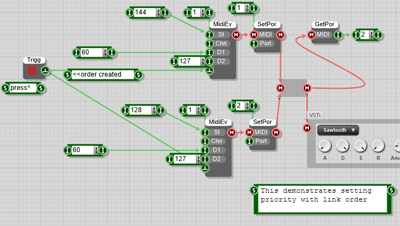

Here is a demo of the link order setting priority->

link order.png (75.71 KiB) Viewed 14171 times

4Nowhk_link order.fsm

(22.41 KiB) Downloaded 794 times

The links out of the button set the order.
Will be back with the delay ones soon.
